2. Setting up SBBSECHO

2.1 Running ECHOCFG

To setup SBBSECHO, (the program that tosses the mail between Synchronet and
the Argus Mailer) you need to invoke the following command line in a DOS box
from within the C:\SBBS\EXEC\ directory.

ECHOCFG C:\SBBS\CTRL\SBBSECHO.CFG

Not that it really needs repeating, but be sure to insert your drive/path
as necessary.

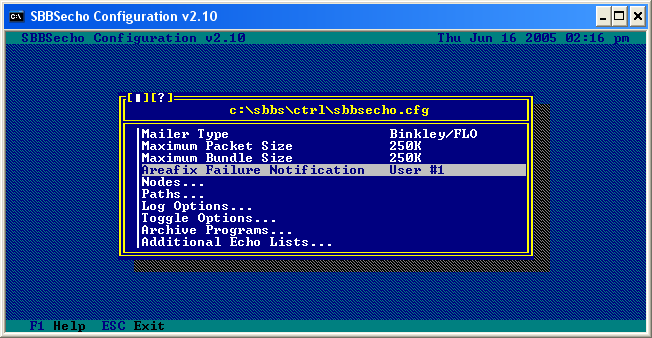

Upon invoking this command, you will be presented with a screen similar
to Figure 10.

 Figure 10.

Make sure the first option, Mailer Type is set to Binkley/FLO.

Back to Contents

2.2 Nodes Setup

Now go to Nodes...  Here you will add 1:229/2000 by pressing the INSert key.

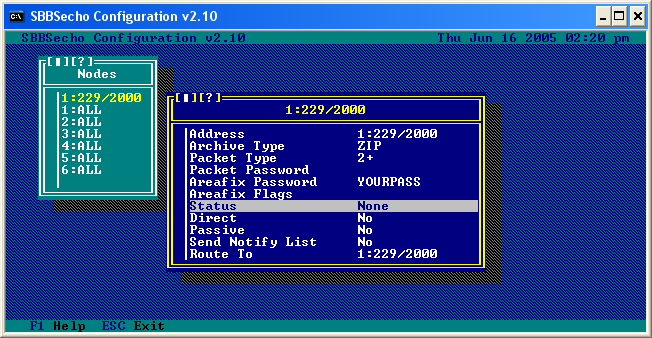

For setup here, refer to Figure 11 below.  [ Note:  Change 1:229/2000 in all cases for the
Hub system you have been assigned. ]

Figure 11.

Address:  1:229/2000
AreaFix Password: PASSWORD -- This is the password that you
		will use on my system.  It is case sensitive.   [password is
		not the same as PASSWORD ]  You will need to mail
		his password along with a session password for Argus  to your
		assigned Hub.  Discussed later in the Argus Setup section.)
		If you wish to use a packet password, you may also send that as
		well although there really is no need for it.

Status:  None
Direct:  Yes
Route To:  1:229/2000

You will repeat INSerting nodes as below.
For all these addresses Direct will be No.
There is no password for these entries.

Address :  1:ALL
Route To:  1:229/2000

Address :  2:ALL
Route To:  1:229/2000

Address :  3:ALL
Route To:  1:229/2000

Address :  4:ALL
Route To:  1:229/2000

Address :  5:ALL
Route To:  1:229/2000

Address :  6:ALL
Route To:  1:229/2000

Back to Contents

2.3 Paths and Filenames

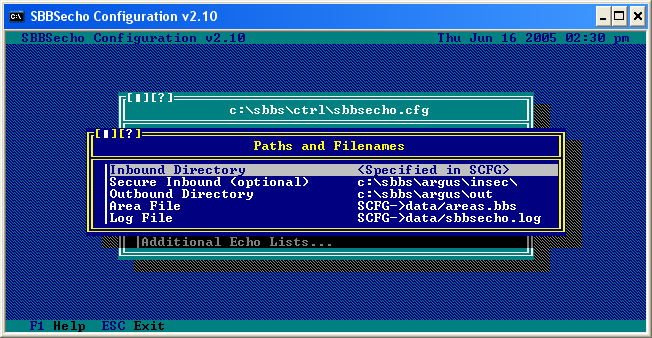

Refer to Figure 12 below for path configuration.  Again, be sure to substitute
your SBBS directory (C:\SBBS\) for the first part of the path.  The \ARGUS\INSEC\
and \ARGUS\OUT\ need to remain the same.  You can place any path and filename for
the Log File that you want.  [ Note:  At all times make sure you substitute the correct path
wherever paths are required.]

Figure 12.

Back to Contents

2.4 Toggle Options

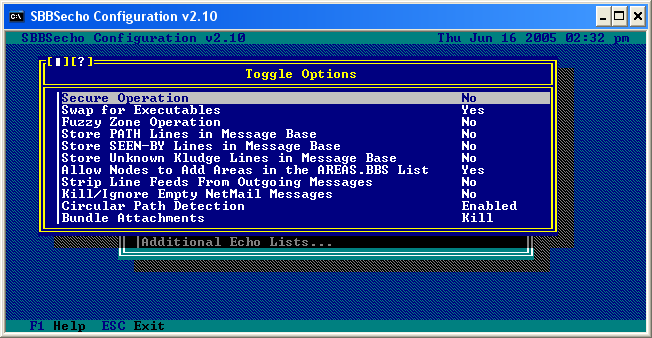

Refer to Figure 13 below for options.

Figure 13.

Back to Contents

2.5 Archive Programs

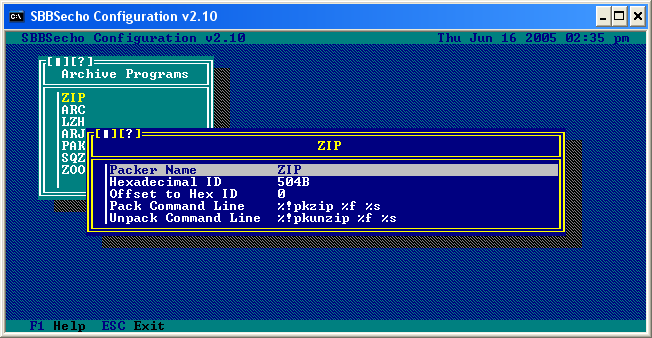

The only archive program in use here is ZIP.  Refer to Figure 14 for details.

Figure 14.

Be sure to have PKZIP.EXE and PKUNZIP.EXE in your C:\SBBS\EXEC\ directory!

Back to Contents
